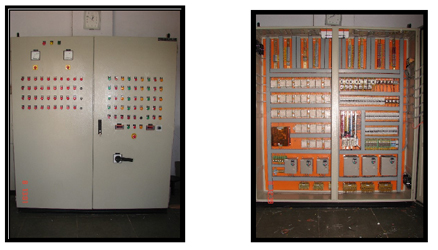

Low Voltage Switchboards |
|
|
| |
Custom-built Low Voltage Switchboard is available in a range from 100A to 2100A with Short-circuit Withstand Protection up to 100kA. It is also available in different forms, suiting a customer's need and application. Its state-of-the-art, fully tested design ensures safety, power-saving and simplicity. |
| |
| • The switchboard is type tested up to 2000Amps, 75kA at 415V, |
| • The switchboard is a free standing design that is both available either for indoor or outdoor application; the degree of protection is upto IP54 |
| • It can be front or rear accessible and can be bottom or top cable entry. Removable gland plate is provided for the cable entry. Aluminum gland plate can be provided upon request for easier installation of cable gland and to provide corrosion resistance even after punching at the site. |
| • Busbars are of tin-plated copper. Silver plated copper and Busbars with PVC sleeves can also be provided upon request. |
| • Manufactured out of Electro galvanized sheet steel with a 2.0mm thick for frames and 1.6mm thick for covers. |
| • All the external covers and doors are polyester powder coated with a variety of selection for the paint shade such as RAL 7035, RAL 7032, RAL 7033 and ANSI 61, other shades can be provided upon request. |
| • Factory routine test is conducted on each switchboard that is carefully inspected by QC engineer for the structure and electrical compliance with the specifications and standards. |
| |
